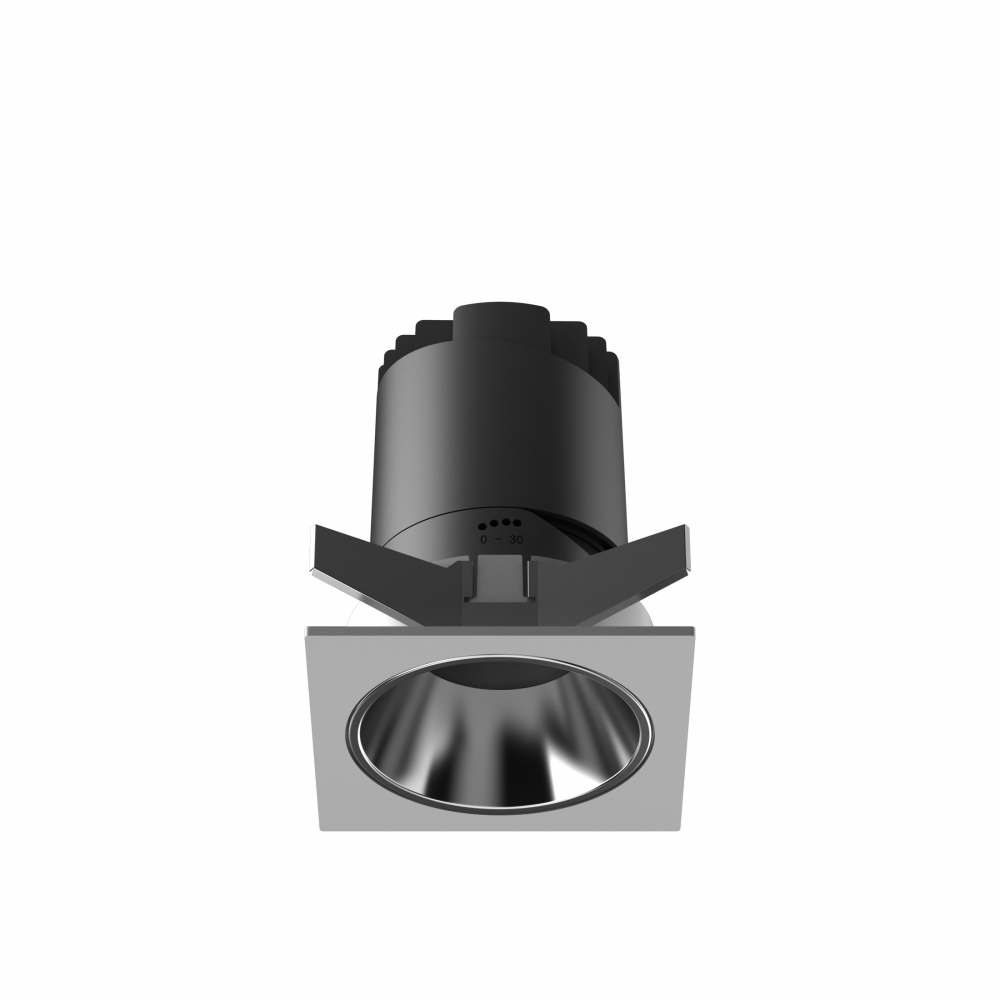

Hotel and Shopping Mall Spot Light

Model Code: ILL-DL02002

Power: 20W
Input: AC220-240V, 50~60Hz
Dimension: 106x106x119 mm
Cutout: 95x95 mm
Lumen Flux: 1600 lm
CRI: >80 & >90 & >95.
Beam Angle: 15 / 24 / 36 deg.
LED: COB
Power Supply: Eaglerise (Lifud, Philips and Tridonic optional).
Color Temperture: 2700K, 3000K, 4000K, 5000K, 5700K, 6500K
IP Rate: IP20 and IP44

Categories:LED Spot Light

Add To Basket Get A Quote

Product Description

Product Features:

1. High energy effieciency, low power consumption.
2. Long life-span, low temperature rising.
3. Serialized products, power from 6W, 12W, 20W and 35W

Material: Aluminum.

Application: Hotel, Shopping Mall, Store and Office.

Full Specifications:

No.

Model Code

Power

(W)

Dimension

(mm)

Cutout

(mm)

Beam Angle

1

ILL-DL00602

6W

60x60x73

50*50

15°/24°/38°

2

ILL-DL01202

12W

86x86x104

75*75

15°/24°/38°

3

ILL-DL02002

20W

106x106x119

95*95

15°/24°/38°

4

ILL-DL03502

35W

133x133x145

120*120

15°/24°/38°

No.	Model Code	Power (W)	Dimension (mm)	Cutout (mm)	Beam Angle
1	ILL-DL00602	6W	60x60x73	50*50	15°/24°/38°
2	ILL-DL01202	12W	86x86x104	75*75	15°/24°/38°
3	ILL-DL02002	20W	106x106x119	95*95	15°/24°/38°
4	ILL-DL03502	35W	133x133x145	120*120	15°/24°/38°

Hotel and Shopping Mall Spot Light
