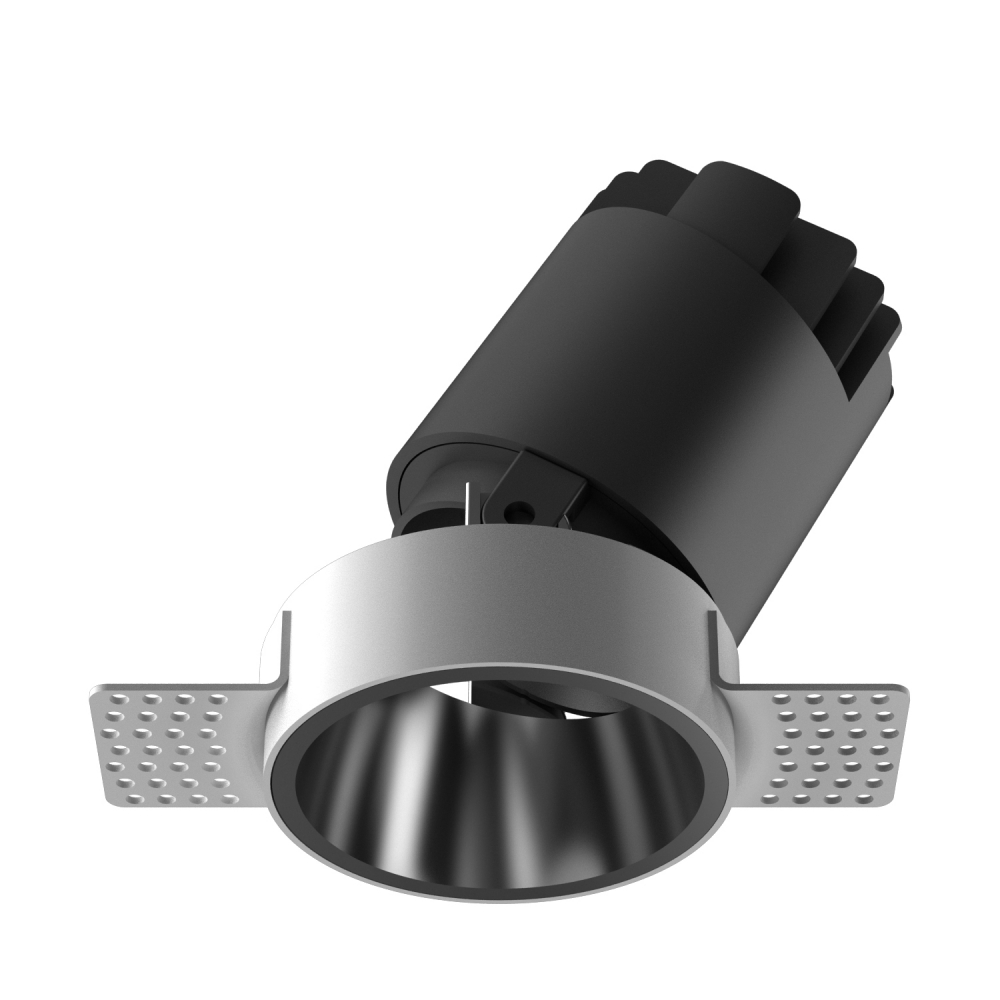

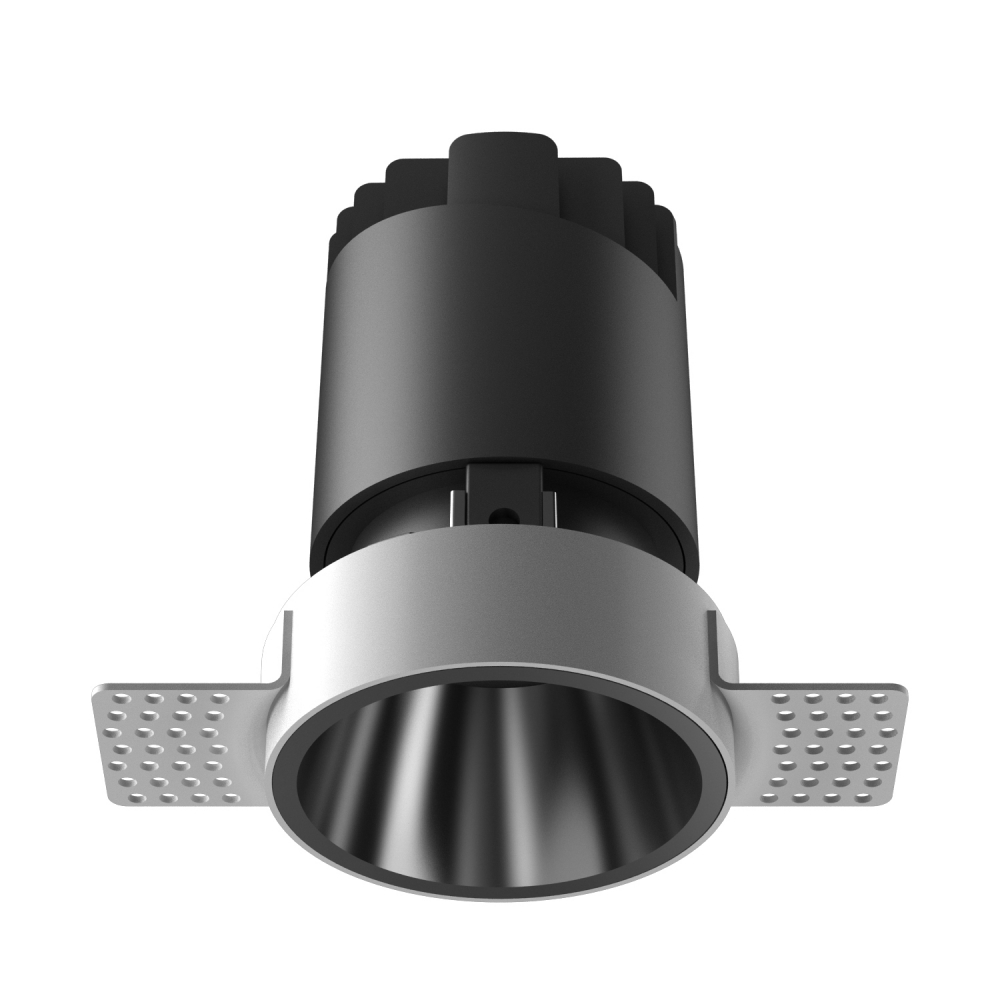

Trimless Spot Light for Hotel Project

Model Code: ILL-DL02003

Power: 20W
Input: AC220-240V, 50~60Hz
Dimension: Ø163x118 mm
Cutout: Ø95 mm
Lumen Flux: 1600 lm
CRI: >80 & >90 & >95.
Beam Angle: 15 / 24 / 36 deg.
LED: COB
Power Supply: Eaglerise (Lifud, Philips and Tridonic optional).
Color Temperture: 2700K, 3000K, 4000K, 5000K, 5700K, 6500K
IP Rate: IP20 and IP44

Categories:LED Spot Light

Add To Basket Get A Quote

Product Description

Product Features:

1. High energy effieciency, low power consumption.
2. Long life-span, low temperature rising.
3. Serialized products, power from 6W, 12W, 20W and 35W.

Material: Aluminum.

Application: Hotel, Shopping Mall and Store.

Full Specifications:

No.

Model Code

Power

(W)

Dimension

(mm)

Cutout

(mm)

Beam Angle

1

ILL-DL00603

6W

Ø94x77

Ø50

15°/24°/38°

2

ILL-DL01203

12W

Ø127x104

Ø75

15°/24°/38°

3

ILL-DL02003

20W

Ø163x118

Ø95

15°/24°/38°

4

ILL-DL03503

35W

Ø186x147

Ø120

15°/24°/38°

No.	Model Code	Power (W)	Dimension (mm)	Cutout (mm)	Beam Angle
1	ILL-DL00603	6W	Ø94x77	Ø50	15°/24°/38°
2	ILL-DL01203	12W	Ø127x104	Ø75	15°/24°/38°
3	ILL-DL02003	20W	Ø163x118	Ø95	15°/24°/38°
4	ILL-DL03503	35W	Ø186x147	Ø120	15°/24°/38°

Trimless Spot Light for Hotel Project
