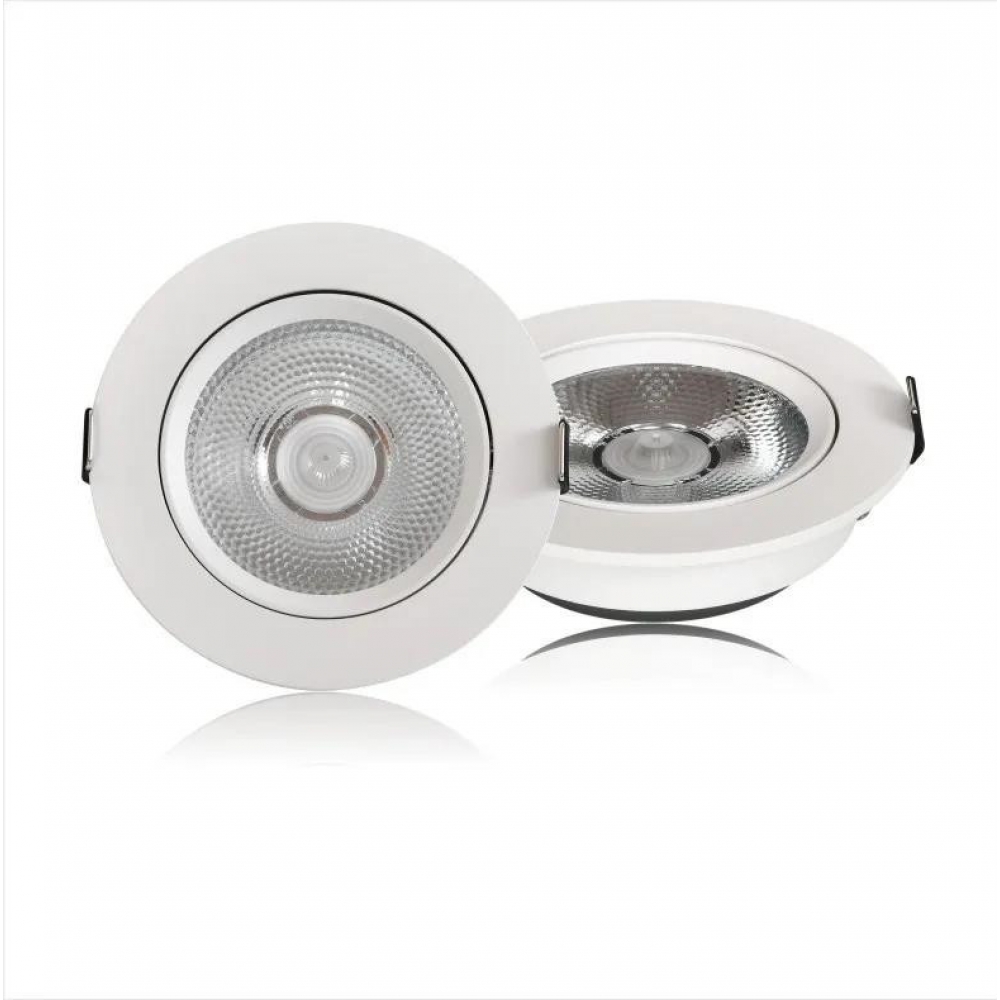

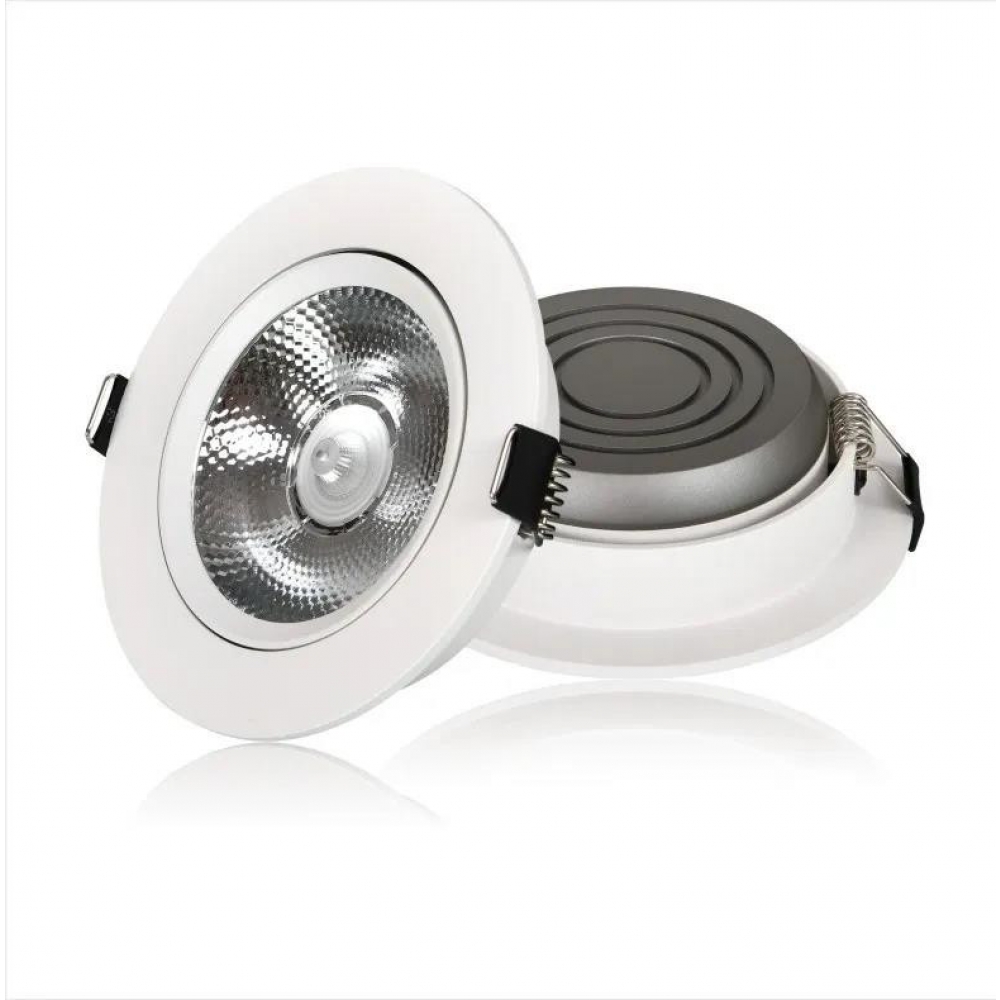

Super Thin Spot Light

Model Code: ILL-SL02010

Power: 20W
Input: AC220-240V, 50~60Hz
Dimension: Ø138*35 mm
Cutout: Ø120 mm
Lumen Flux: 1600 lm
CRI: >80 & >90 & >95.
Beam Angle: 15 / 24 / 36 deg.
LED: COB
Power Supply: Eaglerise (Lifud, Philips and Tridonic optional).
Color Temperture: 2700K, 3000K, 4000K, 5000K, 5700K, 6500K
IP Rate: IP20

Categories:LED Spot Light

Add To Basket Get A Quote

Product Description

Product Features:

1. Good quality die-cast aluminum make sure excellent heat dissipation.
2. Adjustable downlight.
3. Tiltable 20°,which can be adjusted precisely for optimum beam alignment
4. Super thin heatsink design suite for low ceiling requirement.
5. Professional optical design for glare-proof which ensures visual comfort

Material: Aluminum.

Application: Hotel, Shopping Mall, Store and Office.

Full Specifications:

No.

Model Code

Power

(W)

Dimension

(mm)

Cutout

(mm)

Beam Angle

1

ILL-SL00310

3W

Ø68*25

Ф55

10°/20°/30°

2

ILL-SL00710

7W

Ø90*25

Ф75

10°/20°/30°

3

ILL-SL01510

15W

Ø108*50

Ф95

10°/20°/30°

4

ILL-SL02010

20W

Ø138*35

Ф120

10°/20°/30°

No.	Model Code	Power (W)	Dimension (mm)	Cutout (mm)	Beam Angle
1	ILL-SL00310	3W	Ø68*25	Ф55	10°/20°/30°
2	ILL-SL00710	7W	Ø90*25	Ф75	10°/20°/30°
3	ILL-SL01510	15W	Ø108*50	Ф95	10°/20°/30°
4	ILL-SL02010	20W	Ø138*35	Ф120	10°/20°/30°
