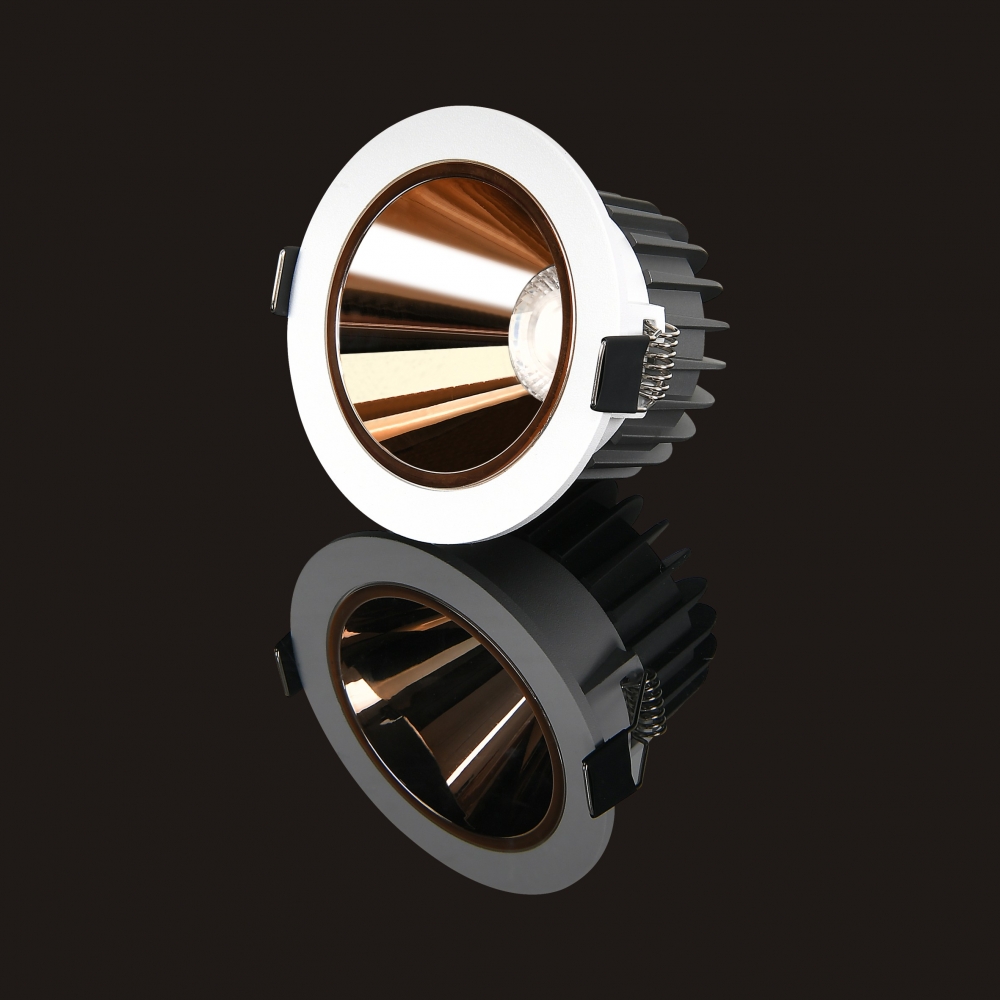

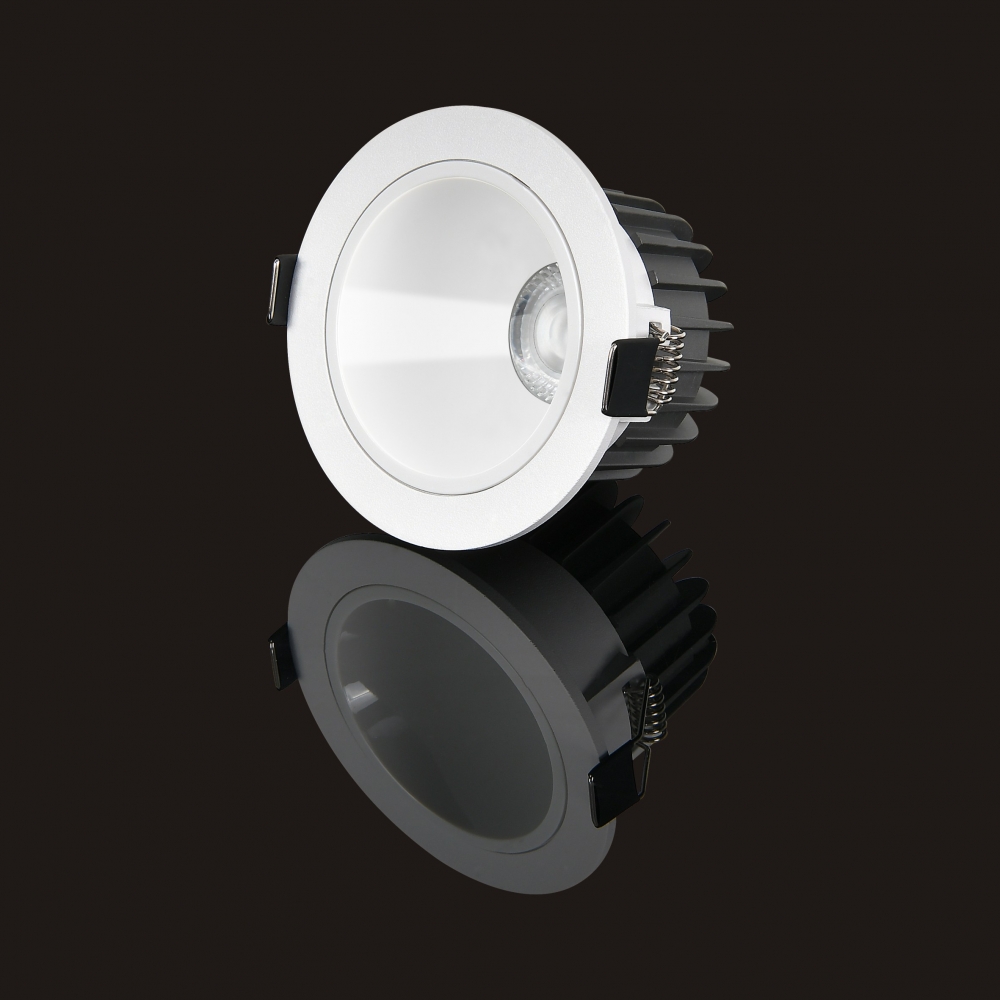

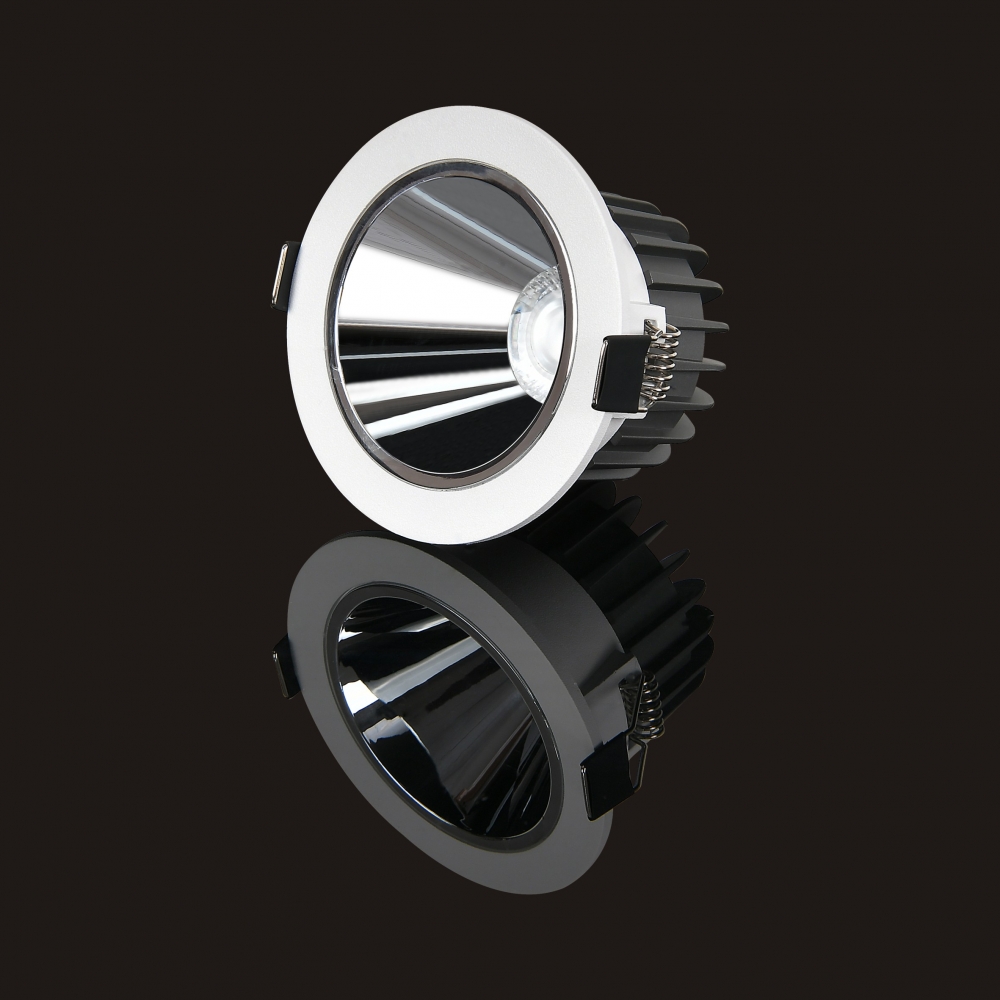

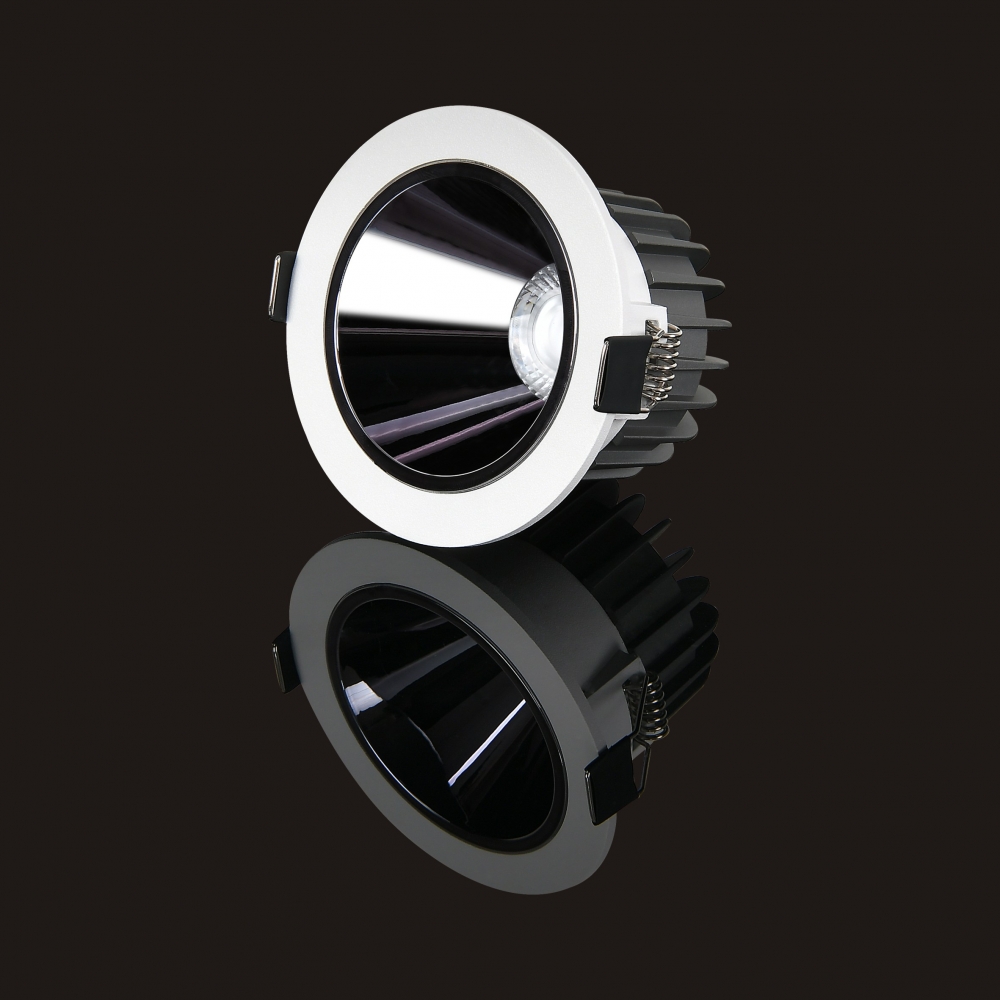

Die-cast Aluminum COB Spot Light

Model Code: ILL-SL03605

Power: 36W
Input: AC220-240V, 50~60Hz
Dimension: Ф185*80 mm
Cutout: Ø150 mm
Lumen Flux: 2880 lm
CRI: >80 & >90 & >95.
Beam Angle: 15 / 24 / 36 deg.
LED: COB
Power Supply: Eaglerise (Lifud, Philips and Tridonic optional).
Color Temperture: 2700K, 3000K, 4000K, 5000K, 5700K, 6500K
IP Rate: IP20

Categories:LED Spot Light

Add To Basket Get A Quote

Product Description

Product Features:

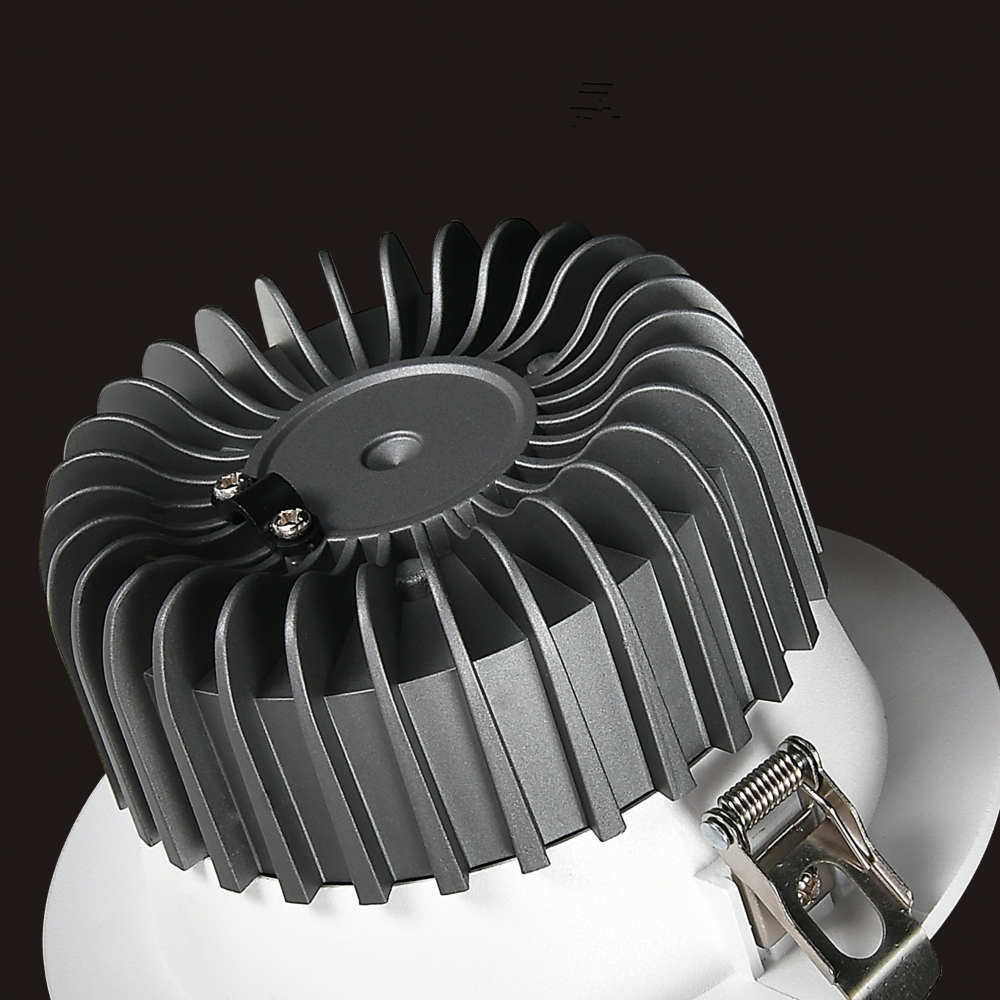

1. Good quality die-cast aluminum make sure excellent heat dissipation.
2. 30° cut-off angle, good visual comfort with high luminous efficiency.
3. Accent lighting in an appearance of general lighting fixture.
4. Mellow and even light output filtered by a special optic.

Material: Aluminum.

Application: Hotel, Shopping Mall, Store and Office.

Full Specifications:

No.

Model Code

Power

(W)

Dimension

(mm)

Cutout

(mm)

Beam Angle

1

ILL-SL01205

12W

Ф95*64

Ф80

15°/24°/38°

2

ILL-SL01505

15W

Ф115*68

Ф95

15°/24°/38°

3

ILL-SL02405

24W

Ф140*75

Ф120

15°/24°/38°

4

ILL-SL03605

36W

Ф185*80

Ф150

15°/24°/38°

No.	Model Code	Power (W)	Dimension (mm)	Cutout (mm)	Beam Angle
1	ILL-SL01205	12W	Ф95*64	Ф80	15°/24°/38°
2	ILL-SL01505	15W	Ф115*68	Ф95	15°/24°/38°
3	ILL-SL02405	24W	Ф140*75	Ф120	15°/24°/38°
4	ILL-SL03605	36W	Ф185*80	Ф150	15°/24°/38°

Die-cast Aluminum COB Spot Light
