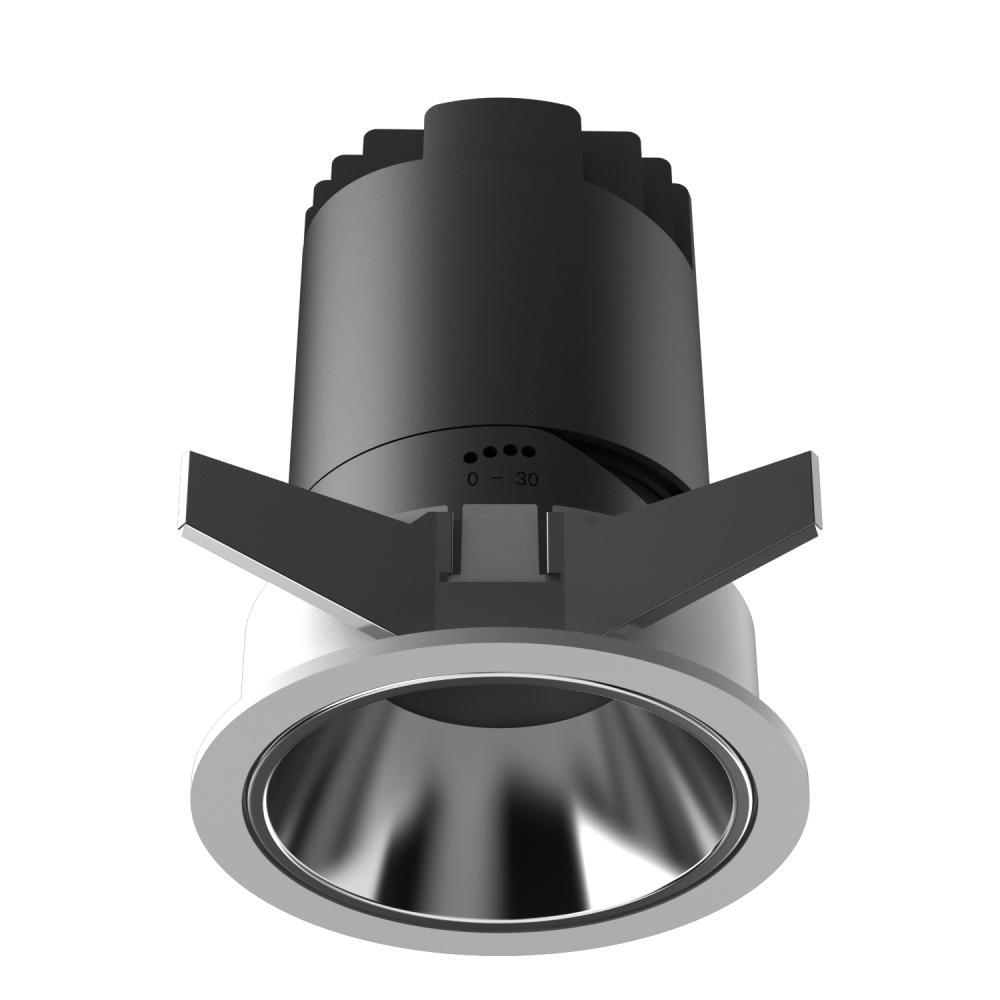

High Quality COB Down Light

Model Code: ILL-DL02001

Power: 20W
Input: AC220-240V, 50~60Hz
Dimension: Ø105x119 mm
Cutout: Ø95 mm
Lumen Flux: 1600 lm
CRI: >80 & >90 & >95.
Beam Angle: 15 / 24 / 36 deg.
LED: COB
Power Supply: Eaglerise (Lifud, Philips and Tridonic optional).
Color Temperture: 2700K, 3000K, 4000K, 5000K, 5700K, 6500K
IP Rate: IP20 and IP44

Categories:LED Spot Light

Add To Basket Get A Quote

Product Description

Product Features:

1. High energy effieciency, low power consumption.
2. Long life-span, low temperature rising.
3. Serialized products, power from 6W, 12W, 20W and 35W.

Material: Aluminum and Plastic

Application: Hotel, Shopping Mall, Store and Office.

Full Specifications:

No.

Model Code

Power

(W)

Dimension

(mm)

Cutout

(mm)

Beam Angle

1

ILL-DL00601

6W

Ø60x73

Ø60

15° /24°/ 38°

2

ILL-DL01201

12W

Ø86x104

Ø75

15° /24°/ 38°

3

ILL-DL02001

20W

Ø105x119

Ø95

15° /24°/ 38°

4

ILL-DL03501

35W

Ø133x145

Ø120

15° /24°/ 38°

Tags:ILL-SL

No.	Model Code	Power (W)	Dimension (mm)	Cutout (mm)	Beam Angle
1	ILL-DL00601	6W	Ø60x73	Ø60	15° /24°/ 38°
2	ILL-DL01201	12W	Ø86x104	Ø75	15° /24°/ 38°
3	ILL-DL02001	20W	Ø105x119	Ø95	15° /24°/ 38°
4	ILL-DL03501	35W	Ø133x145	Ø120	15° /24°/ 38°

High Quality COB Down Light
