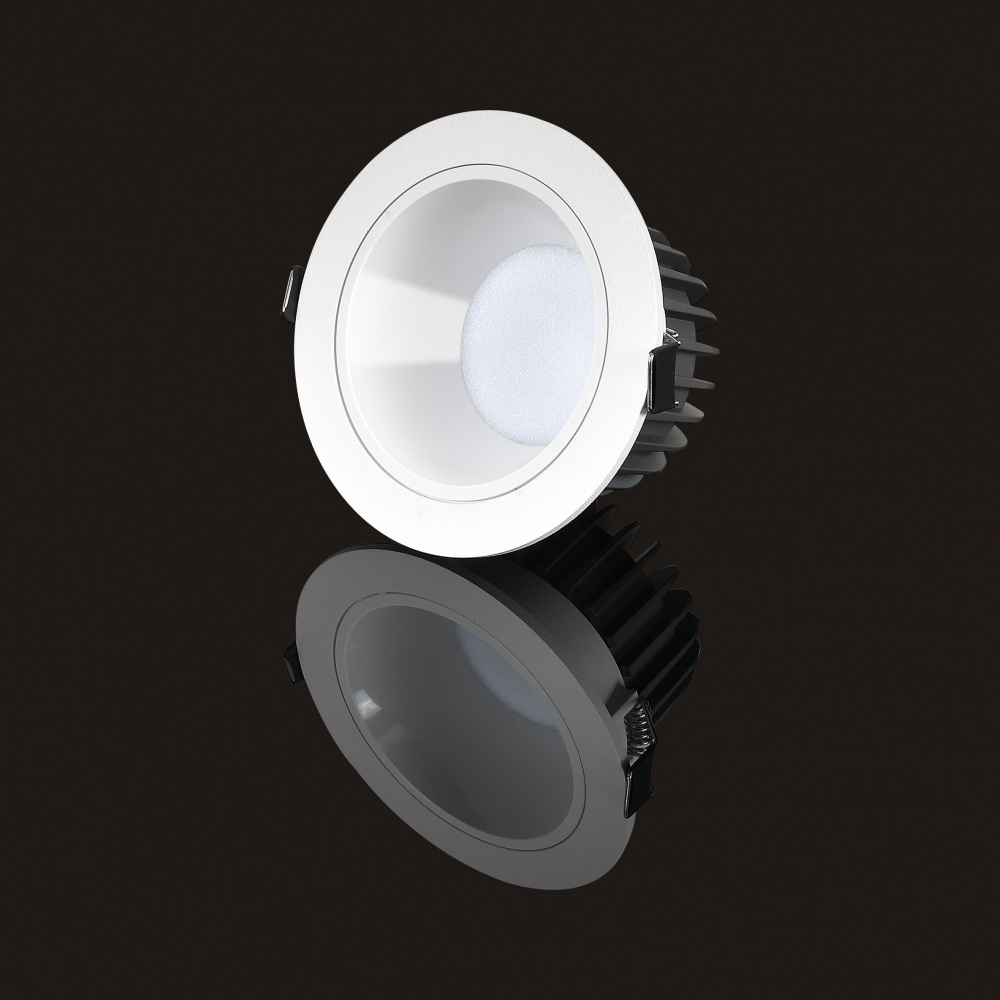

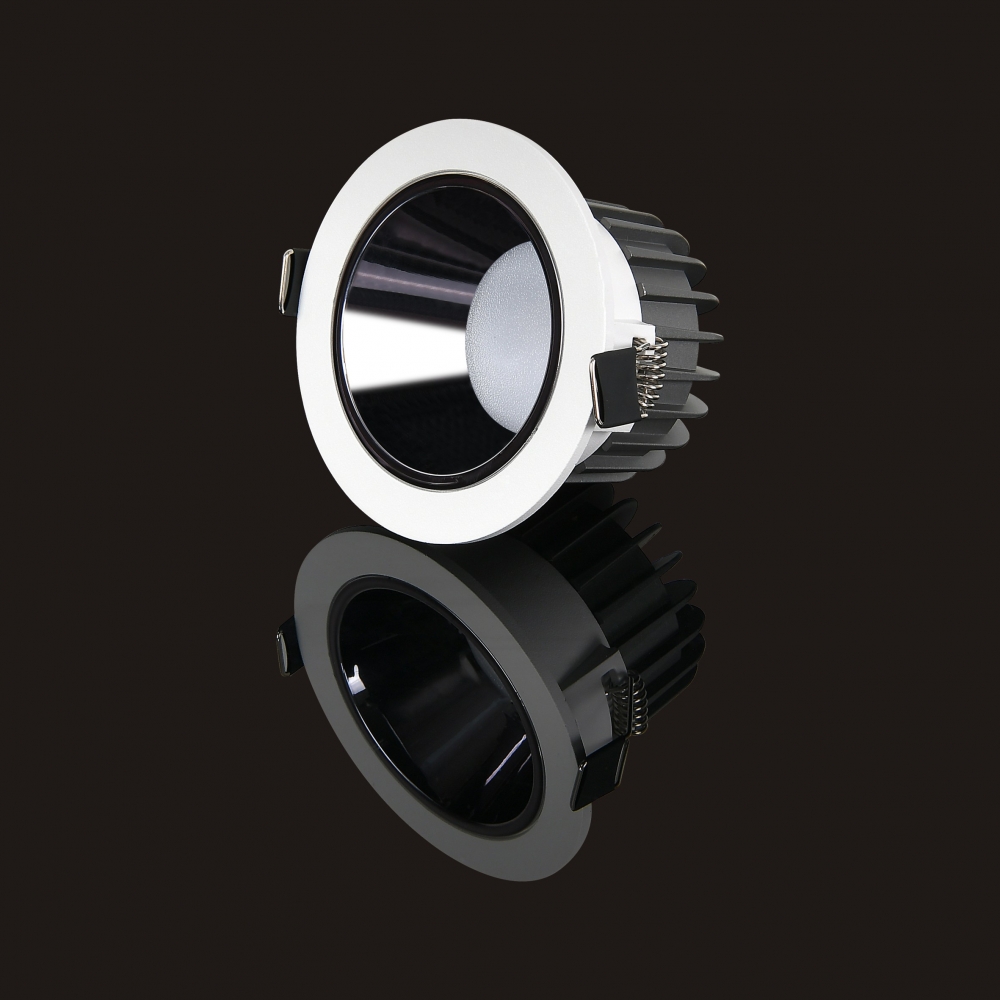

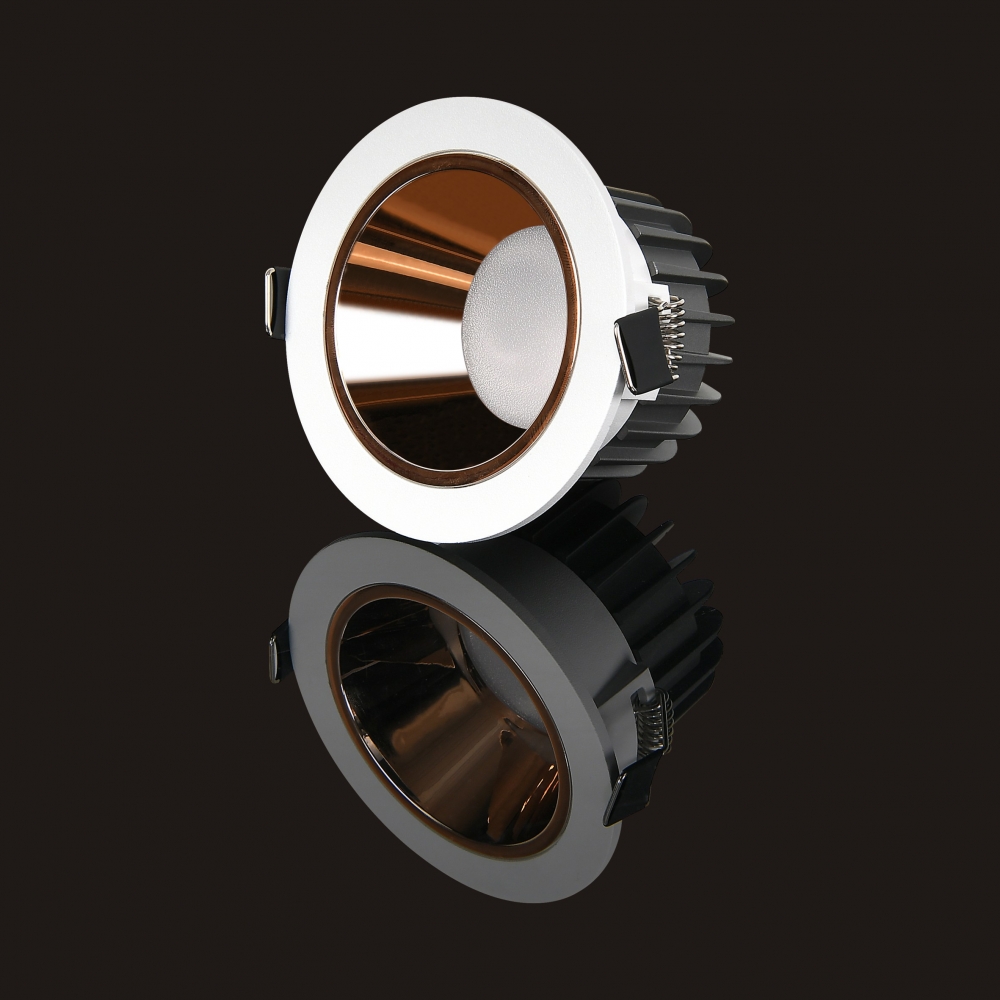

SMD Down Light

Model Code: ILL-DL03605

Power: 36W
Input: AC220-240V, 50~60Hz
Dimension: Ф185*80 mm
Cutout: Ø150 mm
Lumen Flux: 2520 lm
CRI: >80.
Beam Angle: 110 deg.
LED: SMD
Power Supply: Eaglerise (Lifud, Philips and Tridonic optional).
Color Temperture: 2700K, 3000K, 4000K, 5000K, 5700K, 6500K
IP Rate: IP20

Categories:LED Down Light

Add To Basket Get A Quote

Product Description

Product Features:

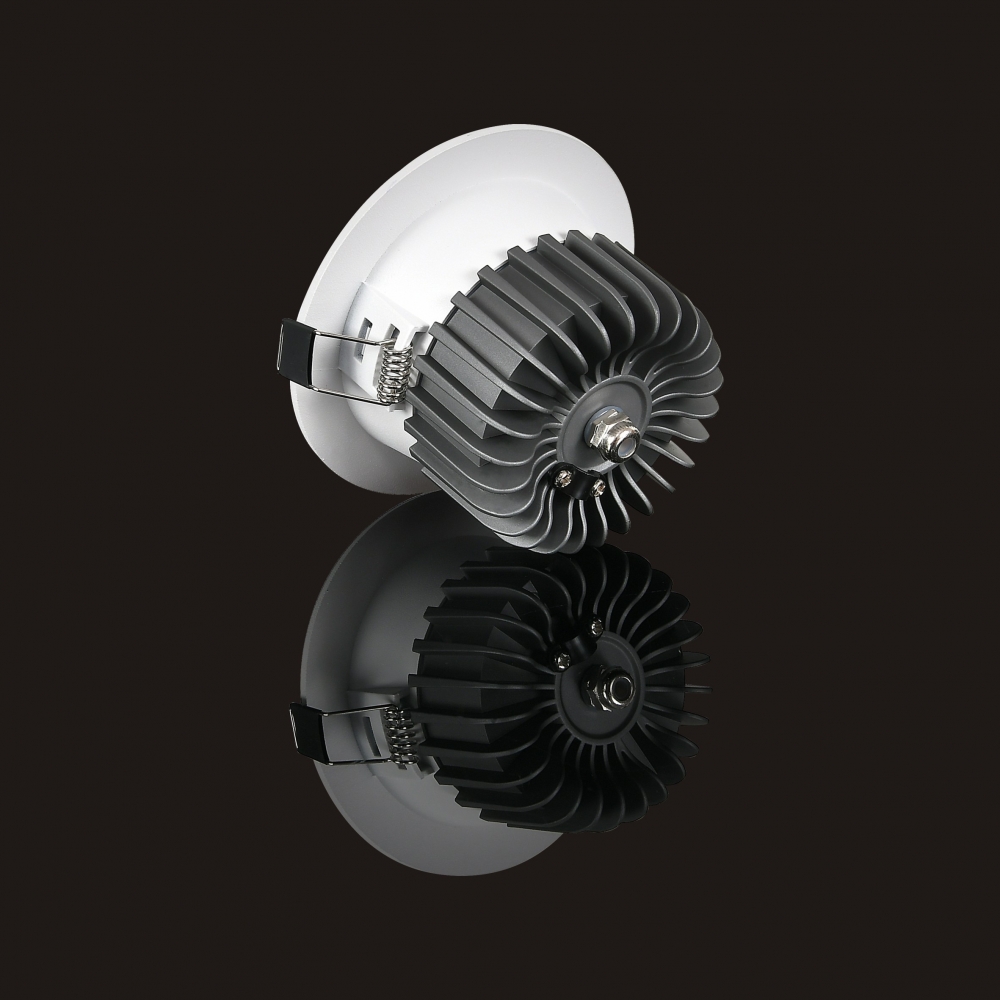

1. Good quality die-cast aluminum make sure excellent heat dissipation.
2. 30° cut-off angle, good visual comfort with high luminous efficiency.
3. Accent lighting in an appearance of general lighting fixture.
4. Mellow and even light output filtered by a special optical diffuser.

Material: Aluminum.

Application: Hotel, Shopping Mall, Store and Office.

Full Specifications:

No.

Model Code

Power

(W)

Dimension

(mm)

Cutout

(mm)

Beam Angle

1

ILL-DL01205

12W

Ф95*64

Ф80

110°

2

ILL-DL01505

15W

Ф115*68

Ф95

110°

3

ILL-DL02405

24W

Ф140*75

Ф120

110°

4

ILL-DL03605

36W

Ф185*80

Ф150

110°

No.	Model Code	Power (W)	Dimension (mm)	Cutout (mm)	Beam Angle
1	ILL-DL01205	12W	Ф95*64	Ф80	110°
2	ILL-DL01505	15W	Ф115*68	Ф95	110°
3	ILL-DL02405	24W	Ф140*75	Ф120	110°
4	ILL-DL03605	36W	Ф185*80	Ф150	110°

SMD Down Light
