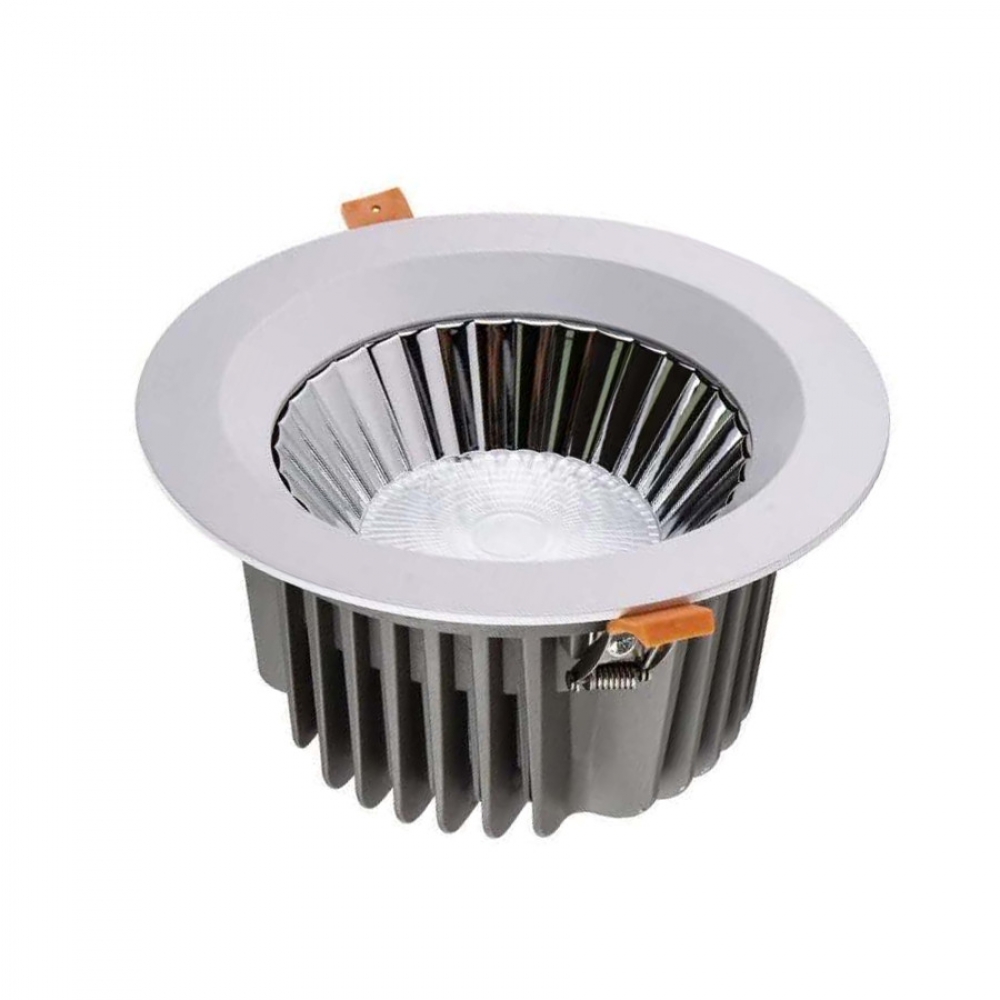

80W COB Down Light

Model Code: ILL-DL08060

Power: 80W
Input: AC220-240V, 50~60Hz
Dimension: Ø230x120 mm
Cutout: Ø195 mm
Lumen Flux: 6400 lm
CRI: >80 & >90 & >95.
Beam Angle: 100 deg.
LED: COB
Power Supply: Eaglerise (Lifud, Philips and Tridonic optional).
Color Temperture: 2700K, 3000K, 4000K, 5000K, 5700K, 6500K
IP Rate: IP20

Categories:LED Down Light

Add To Basket Get A Quote

Product Description

Product Features:

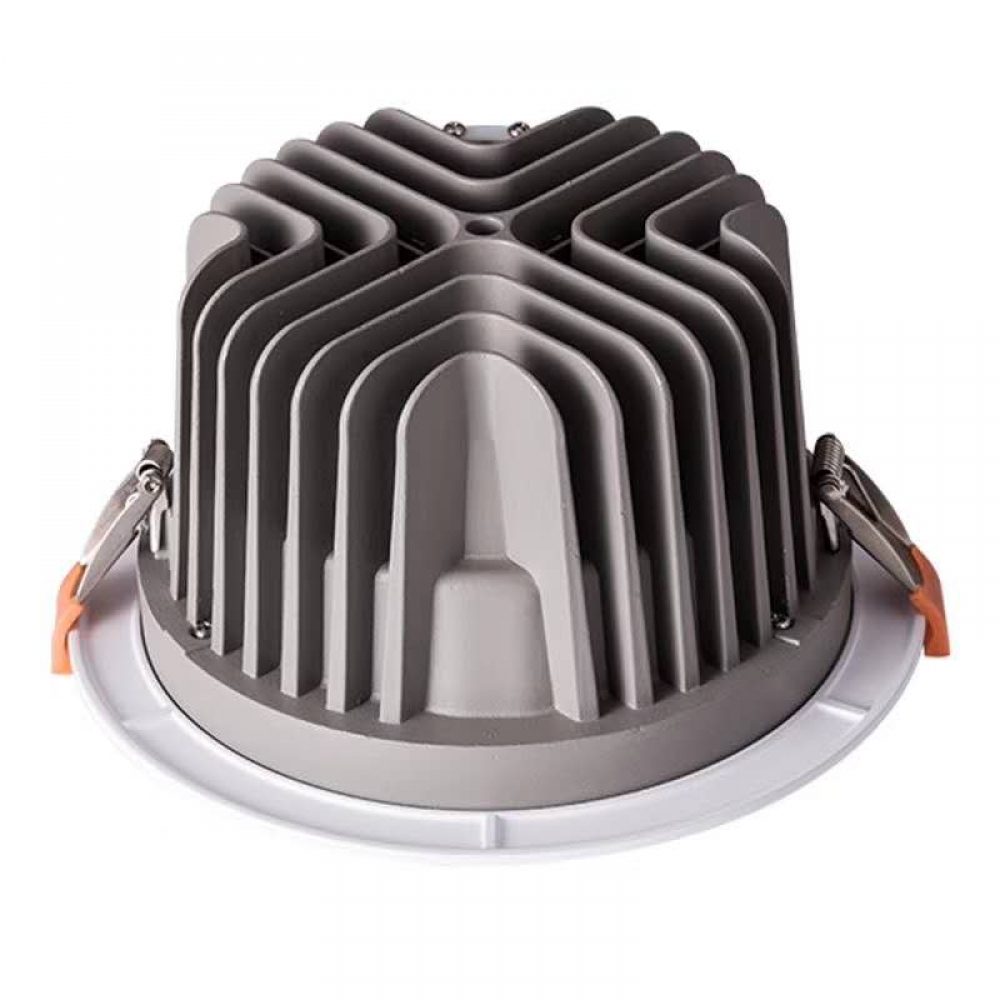

1. Good quality die-cast aluminum make sure excellent heat dissipation.
2. Wide beam, as general lighting
3. Mellow and even light output filtered by a special optical diffuser
4. Cutout size from 3" to 8" meet different projects requirement.
5. Easy to install helps saving time on construction.

Material: Aluminum.

Application: Hotel, Shopping Mall, Store and Office.

Full Specifications:

No.

Model Code

Power

(W)

Dimension

(mm)

Cutout

(mm)

Beam Angle

1

ILL-DL01002

10W

Ø95×H50

ø75

100°

2

ILL-DL01502

15W

ø115×H60

ø95

100°

3

ILL-DL02002

20W

ø145×H75

ø115

100°

4

ILL-DL03002

35W

ø165×H90

ø145

100°

5

ILL-DL05002

50W

ø195×H100

ø165

100°

6

ILL-DL08002

80W

ø230×H120

ø195

100°

No.	Model Code	Power (W)	Dimension (mm)	Cutout (mm)	Beam Angle
1	ILL-DL01002	10W	Ø95×H50	ø75	100°
2	ILL-DL01502	15W	ø115×H60	ø95	100°
3	ILL-DL02002	20W	ø145×H75	ø115	100°
4	ILL-DL03002	35W	ø165×H90	ø145	100°
5	ILL-DL05002	50W	ø195×H100	ø165	100°
6	ILL-DL08002	80W	ø230×H120	ø195	100°
