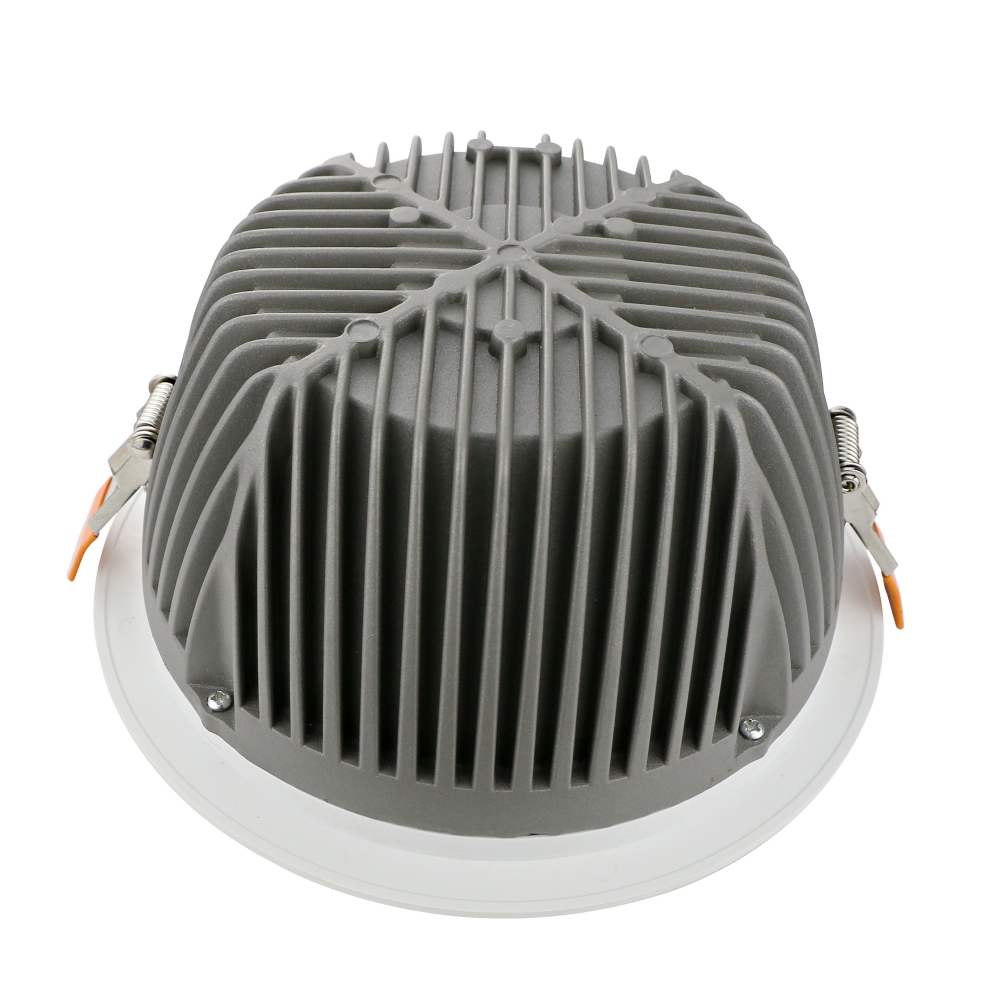

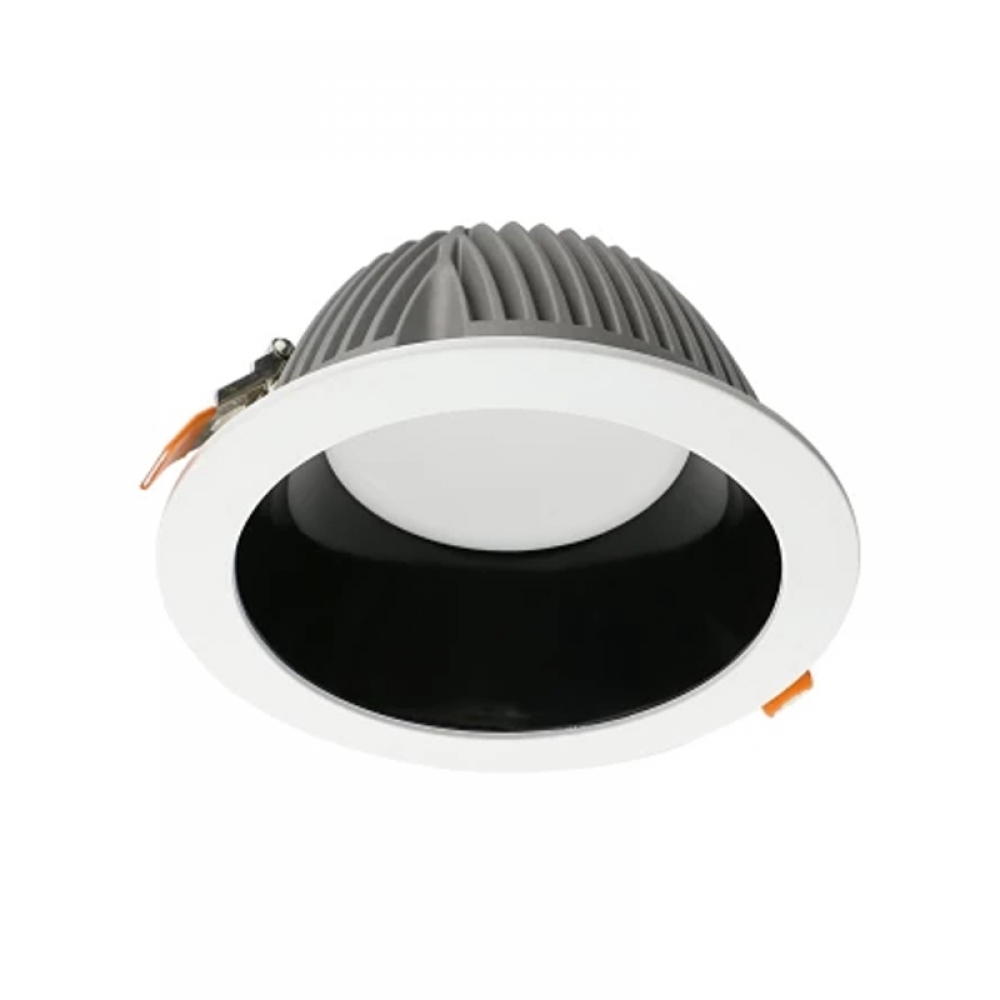

Hot Sale SMD Down Light for Stores

Model Code: ILL-DL03028

Power: 30W
Input: AC220-240V, 50~60Hz
Dimension: Ø220×H98 mm
Cutout: Ø195 mm
Lumen Flux: 2400 lm
CRI: >80.
Beam Angle: 70 deg.
LED: SMD
Power Supply: Eaglerise (Lifud, Philips and Tridonic optional).
Color Temperture: 2700K, 3000K, 4000K, 5000K, 5700K, 6500K
IP Rate: IP20

Categories:LED Down Light

Add To Basket Get A Quote

Product Description

Product Features:

1. Good quality die-cast aluminum make sure excellent heat dissipation.
2. Wide beam, as general lighting
3. Mellow and even light output filtered by a special optical diffuser
4. Cutout size from 3" to 8" meet different projects requirement.
5. Easy to install helps saving time on construction.

Material: Aluminum.

Application: General lighting for exhibitions and commercial applications.

Full Specifications:

No.

Model Code

Power

(W)

Dimension

(mm)

Cutout

(mm)

Beam Angle

1

ILL-DL00709

7W

ø88×H46

ø75

70°

2

ILL-DL01009

10W

ø105×H60

ø90

70°

3

ILL-DL01309

15W

ø130×H68

ø110

70°

4

ILL-DL02009

20W

ø185×H93

ø165

70°

5

ILL-DL03009

30W

ø220×H98

ø195

70°

No.	Model Code	Power (W)	Dimension (mm)	Cutout (mm)	Beam Angle
1	ILL-DL00709	7W	ø88×H46	ø75	70°
2	ILL-DL01009	10W	ø105×H60	ø90	70°
3	ILL-DL01309	15W	ø130×H68	ø110	70°
4	ILL-DL02009	20W	ø185×H93	ø165	70°
5	ILL-DL03009	30W	ø220×H98	ø195	70°

Hot Sale SMD Down Light for Stores
