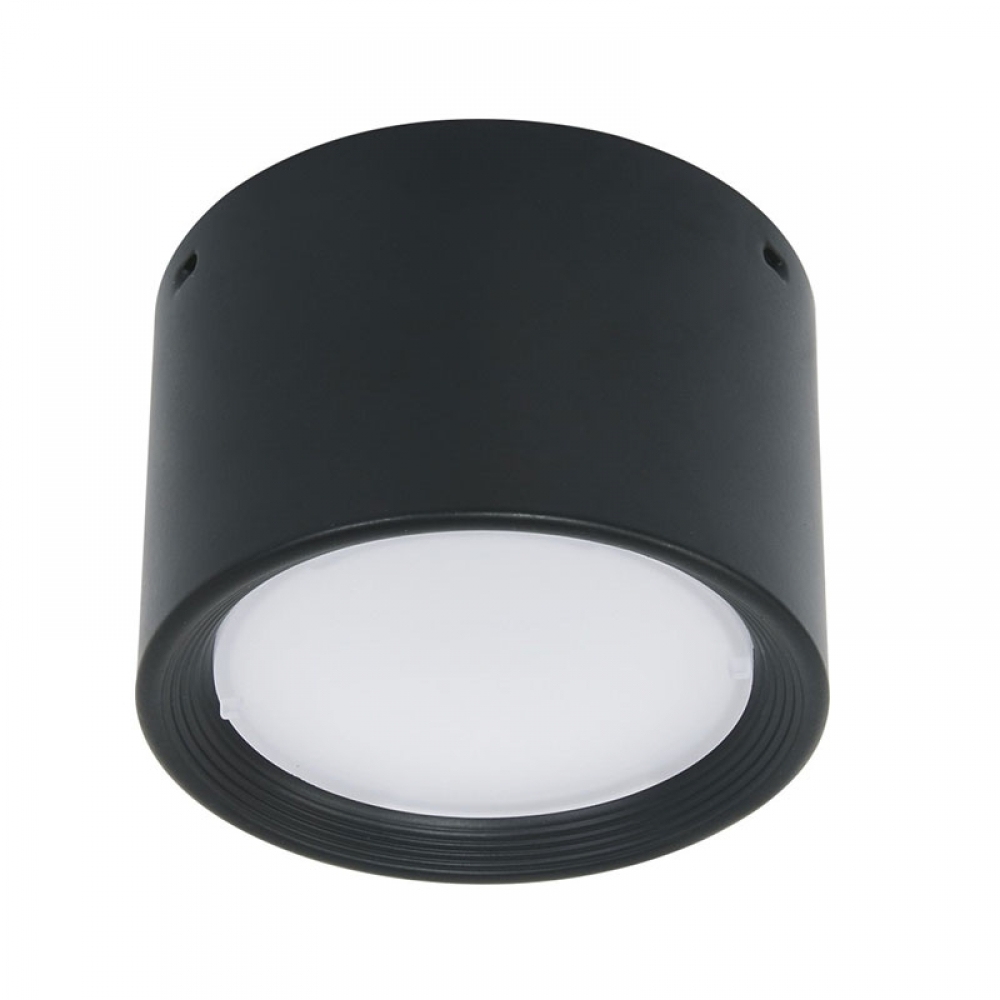

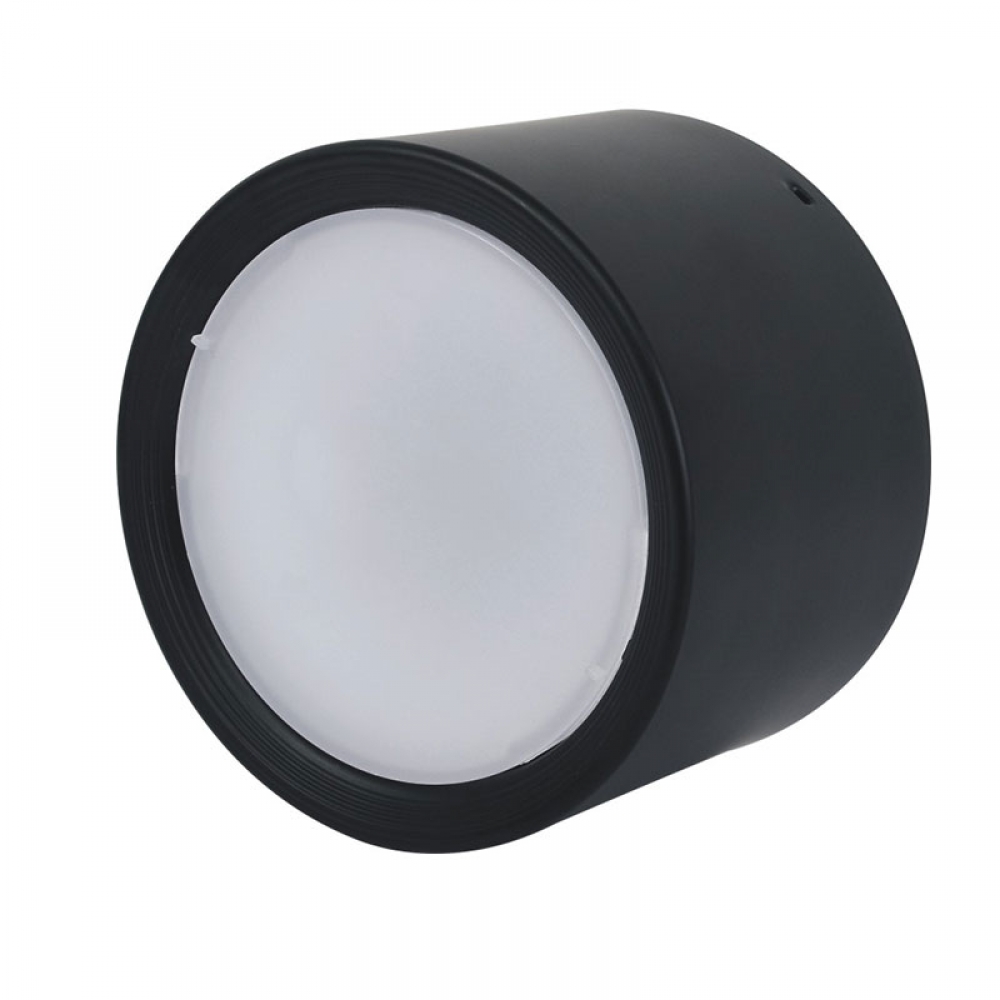

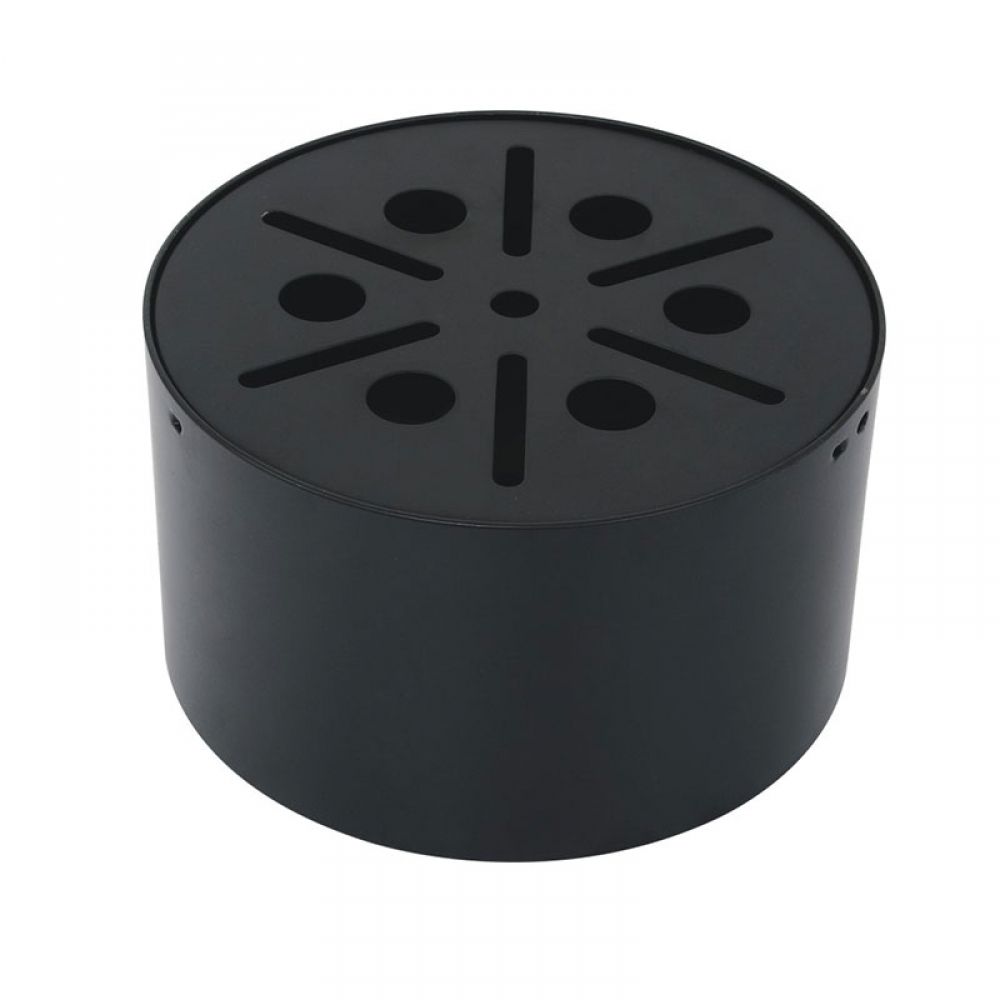

SMD Surface Mounted Downlight

Model Code: ILL-SDL01202

Power: 12W
Input: AC220-240V, 50~60Hz
Dimension: Ф120*H80 mm
Cutout: N/A
Lumen Flux: 840 lm
CRI: >80.
Beam Angle: 110 deg.
LED: SMD
Power Supply: Eaglerise (Lifud, Philips and Tridonic optional).
Color Temperture: 2700K, 3000K, 4000K, 5000K, 5700K, 6500K
IP Rate: IP20

Categories:LED Surface Down Light

Add To Basket Get A Quote

Product Description

Product Features:

1. Suitable for insufficient false ceiling height
2. General lighting with wide beam
3. Anti-glare design ensures visual comfort

Material: Aluminum.

Application: Hotel, Shopping Mall, Store and Office.For residential and commercial applications; such as galleries, exhibition, cafeteria, bars etc.

Full Specifications:

No.

Model Code

Power

(W)

Dimension

(mm)

Cutout

(mm)

Beam Angle

1

ILL-SDL00502

5

Ф86*H60

N/A

110°

2

ILL-SDL00702

7

Ф100*H67

N/A

110°

3

ILL-SDL01202

12

Ф120*H80

N/A

110°

4

ILL-SDL01502

15

Ф154*H90

N/A

110°

5

ILL-SDL01802

18

Ф170*H100

N/A

110°

6

ILL-SDL02402

24

Ф210*H120

N/A

110°

No.	Model Code	Power (W)	Dimension (mm)	Cutout (mm)	Beam Angle
1	ILL-SDL00502	5	Ф86*H60	N/A	110°
2	ILL-SDL00702	7	Ф100*H67	N/A	110°
3	ILL-SDL01202	12	Ф120*H80	N/A	110°
4	ILL-SDL01502	15	Ф154*H90	N/A	110°
5	ILL-SDL01802	18	Ф170*H100	N/A	110°
6	ILL-SDL02402	24	Ф210*H120	N/A	110°

SMD Surface Mounted Downlight
