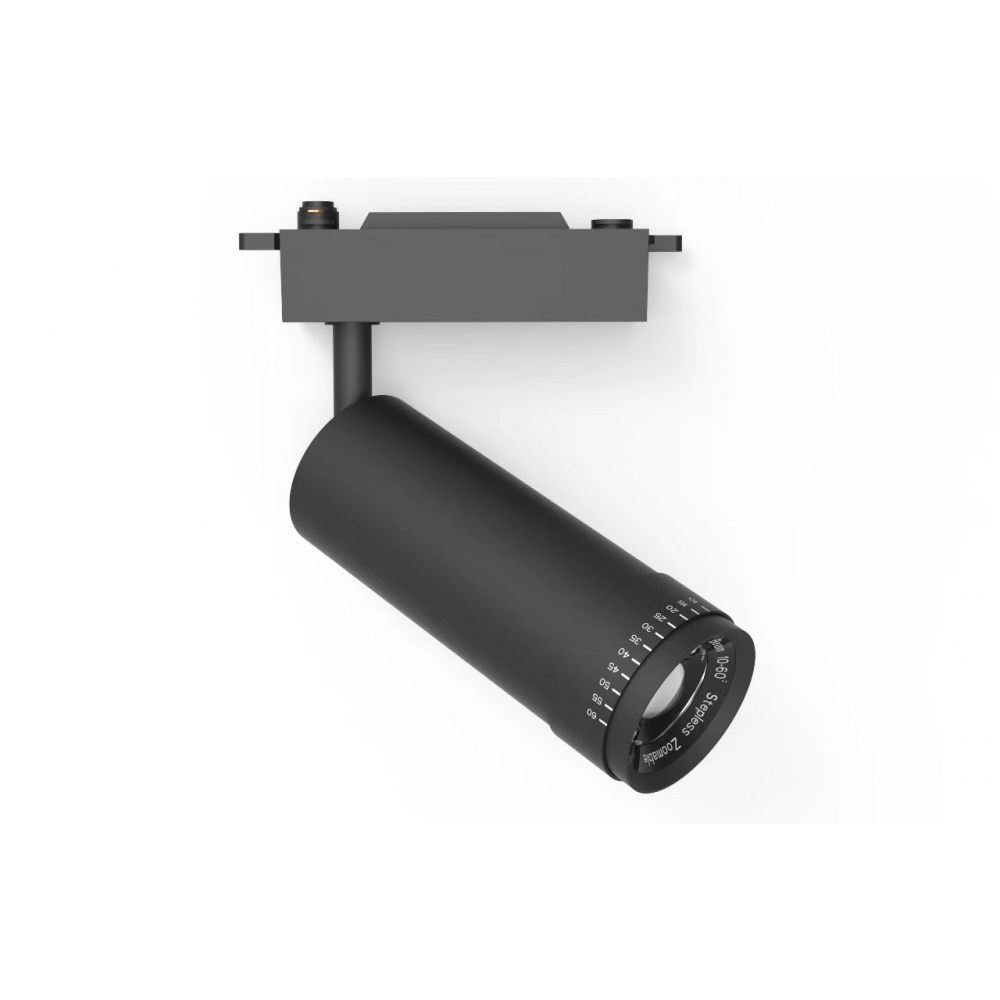

Beam Angle Changeable Track Light

Model Code: ILL-TL03003

Power: 30W
Input: AC220-240V, 50~60Hz
Dimension: Ø68*158 mm
Adaptor:2/3/4 wires
Lumen Flux: 2400 lm
CRI: >80 & >90 & >95.
Beam Angle: 10°~60°.
LED: COB
Power Supply: Eaglerise (Lifud, Philips and Tridonic optional).
Color Temperture: 2700K, 3000K, 4000K, 5000K, 5700K, 6500K
IP Rate: IP20

Categories:LED Track Light

Add To Basket Get A Quote

Product Description

Product Features:

1. Beam angle adjustable from 10°~60°
2. Built-in driver, three beam angle options
3. The stemis 355° horizontally rotatable and the body is able to tilt 180° vertically, which can be adjusted precisely for optimum beam alignment

Material: Aluminum.

Application: Accent lighting for museums, galleries, showrooms and commercial applications.

Full Specifications:

No.

Model Code

Power

(W)

Dimension

(mm)

Cutout

(mm)

Beam Angle

1

ILL-TL01003

10

Ø48*105

2/3/4 wires

10°~60°

2

ILL-TL02003

20

Ø58*152

2/3/4 wires

10°~60°

3

ILL-TL03003

30

Ø68*158

2/3/4 wires

10°~60°

No.	Model Code	Power (W)	Dimension (mm)	Cutout (mm)	Beam Angle
1	ILL-TL01003	10	Ø48*105	2/3/4 wires	10°~60°
2	ILL-TL02003	20	Ø58*152	2/3/4 wires	10°~60°
3	ILL-TL03003	30	Ø68*158	2/3/4 wires	10°~60°

Beam Angle Changeable Track Light
